117-607P-MUF-FSH - National Vacuum - 607 Pro Fan Cooled CCW Muffler Package with HYD Drive - LJI Part: 117-607P-MUF-FSH
| Brand | : National Vacuum |
|---|---|
| Type | : Pump |
| Material | : Ductile Iron |
| Vendor Number | : 117-607P-MUF-FSH |
The National Vacuum Challenger 607 pump is a heavy-duty vacuum pump used primarily in liquid waste pumping applications. It's designed for continuous, demanding operations in industries such as oil fields, septic systems, restaurant grease collection, and industrial waste management.

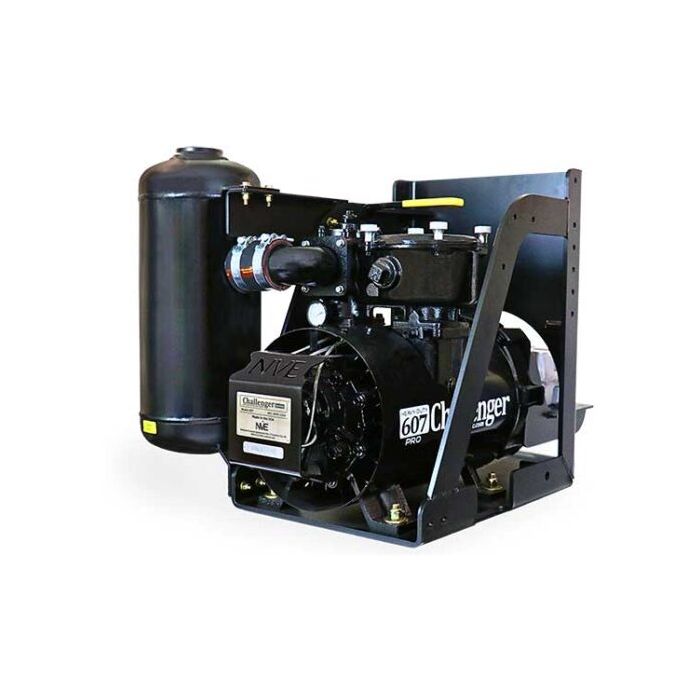

This Fan Cooled Muffler Package features a compact design round oil catch muffler, a stainless steel mesh filter, and factory-connected elbows, fittings, and high-temp hoses. It also has a new gearbox bracket that allows up to four-degree rotation to ease driveline angles, and a slotted mounting plate that allows the gearbox to slide further away from the pump. This product also includes a hydraulic drive and rotates counterclockwise.
NVE Challenger 607 Pro Pump Specs
- Ductile iron housing (tough like steel)
- The NVE bi-rotational, four port oil pump is exclusive to NVE's "oil management system" delivering the precise amount of oil required for any job. Easily adjustable to 5-24 oz. per hour
- Rugged braided stainless steel oil delivery lines
- Vacuum relief boss
- Vanes flush port valve
- Vane wear inspection port
- Integral, easily accessible & cleanable, stainless steel final filter
- Proven crash protection allowing all major components to survive a catastrophic failure
- Remote mount 5 quart see through oil tank for constant oil level monitoring
- Thermometer to monitor exhaust temperature.
- Multiple drive options (gearbox, belt, hydraulic, and direct)
- Two year warranty against manufacturer defect
- Designed, built, and supported in the USA
